Our CleanTop® Coating system is much more than just a subsequently applied impregnation on the stone surface. Our Clean-Top® systems represent an essential competitive advantage for your products, and they are already approved for decades! From acrylate wet-side coating systems to 2-component systems (part of mixdesign and coating layer) to 3-component systems applied on the wet and dry side. The question is: What do you need for your products and for your market? Which benefits and climatic challenges are important for you?
With our advice and experience in application technology of spraying bars, roller systems and robots, we will find the right solution for your company to make your products more durable. You will achieve excellent results if we mutually consider the interaction of raw materials, surface properties and performance requirements.
We have been developing suitable coatings for a wide range of paving stones and slabs for over 20 years. In doing so, we are not only focussed on practice and customer value, but also benefit from our own experience in our production – day-to-day. As always, success is based on details.

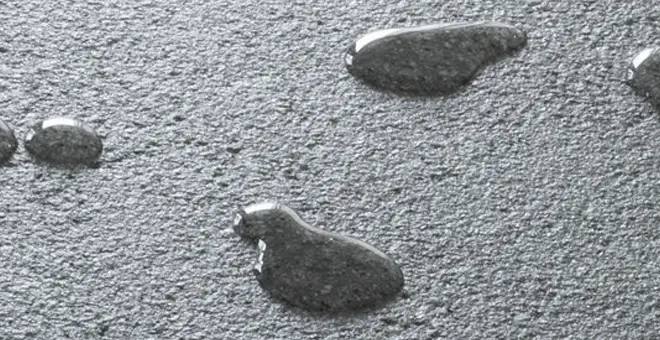

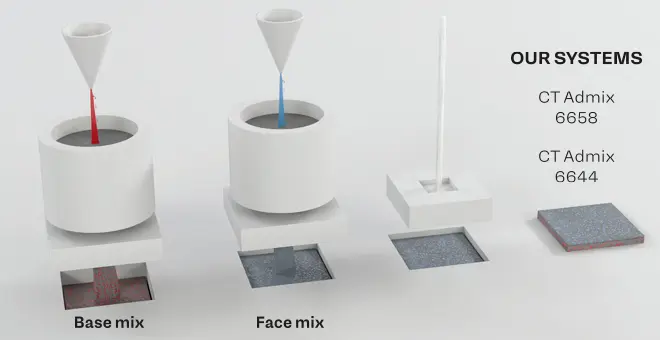

Exceed your customer´s quality expectations! Hydrophobic admixtures developed by METTEN for base and facemix fill pores and capillaries of your product, durably preventing water penetration. Added in the mixing process it becomes an integral part of the production. The result: significantly enhanced freeze-thaw resistence, reduced tendency toward efflorescence and much more!

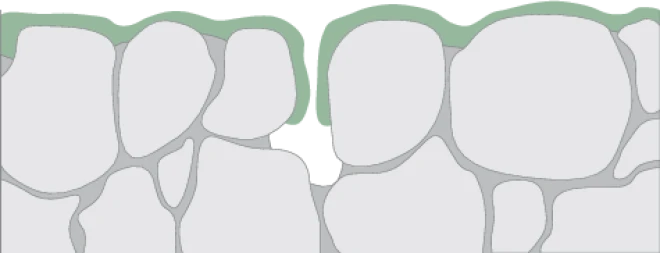

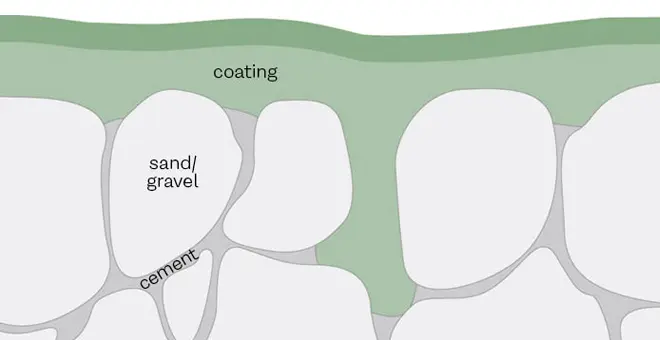

A coating or impregnation is the final step that completes the three level METTEN CleanTop® System – granting an easier-to-clean effect and significantly enhancing the long-term durability of your concrete pavers.

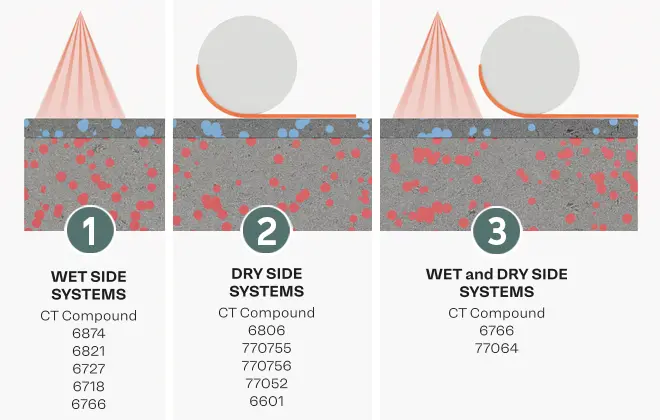

There is no one-size-fits-all solution. Every CleanTop® system is precisely tailored to your raw materials, surface finishes, and performance requirements. Backed by more than 25 years and more than 13.000.000 sqm of hands-on experience, METTEN offers you a comprehensive portfolio of proven solutions: From film-forming to non-film-forming coatings, from cost-efficient, high-performance wet side coatings to premium wet and/or dry side surface treatments – you and your customer can rely on consistent quality, lasting protection, and visible value.
→ customized solution
→ cost-efficient wet side CleanTop® System
→ high-performance dry side CleanTop® System
| CleanTop-System | Concret Mixture Additives | Wetside Coating | Concrete Curing Climate Controled | Surface Treatment | Dryside | Concrete-Product | ||
|---|---|---|---|---|---|---|---|---|
| Spray Application | Preparation | Coating | Hardening | (Tradename) | ||||
| ONE | CT Admix 6658 + additives |
Optional | IR | X-Protect 70575 70576 | IR | Corio®/ Boulevard® |
||
| TWO | CT Admix 6658 (optional) |
CT Compound 6724 | Yes | Standard | ||||
| TWO | CT Admix 6658 (optional) |
CT Compound 6718/6727/6766 |

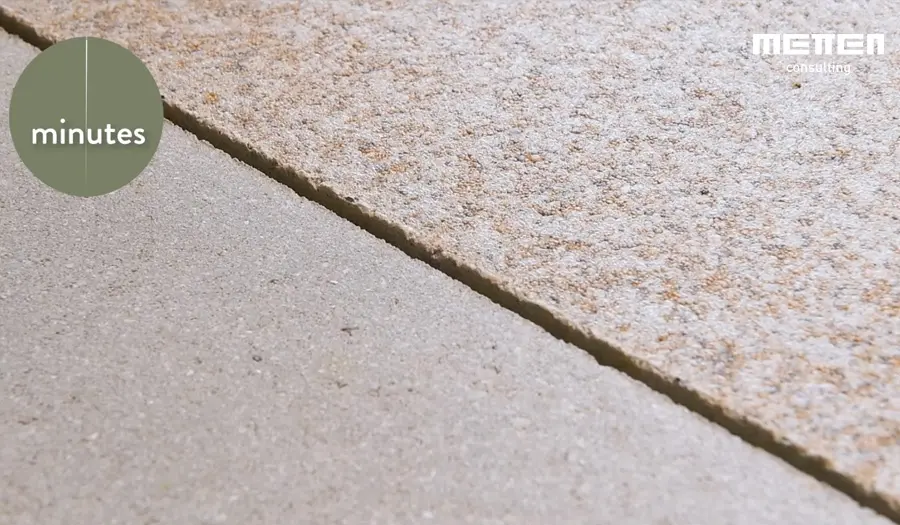

Yes | Umbriano®/ La Linia® |
||||
| THREE | CT Admix 6658 | CT Compound 6762 |
Yes | Senzo® | ||||
| FIVE | CT Admix 6658 | CT Compound 6762 + Surface Treatment |
Yes | IR | CT7051 | UV | Belpasso® | |
| FIVE | CT Admix 6658 | CT Compound 6766 |
Yes | IR | CT7055 | UV | CF 150 | |
| FIVE | EcoTerra | Yes | IR | CT7060 | UV | CF 150 | ||
| CleanTop-System | Concret Mixture Additives | Wetside Coating | Concrete Curing Climate Controled | Surface Treatment | Dryside | Concrete-Product | ||
|---|---|---|---|---|---|---|---|---|
| Spray Application | Preparation | Coating | Hardening | (Tradename) | ||||
| THREE | Optional | IR | 6601 | IR | Arcadia® | |||
| THREE | Optional | IR | 7052 | UV | Platinum®/ Soreno® |
|||

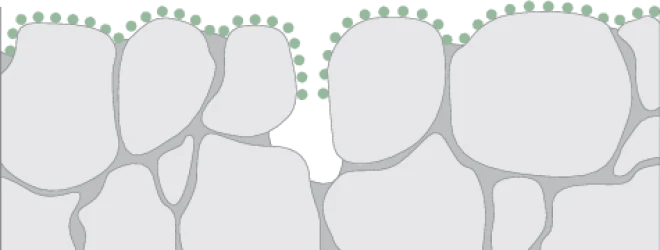

• System for products manufactured on a board machine
• Suitable surfaces with a mechanical secondary finish, e.g. for shot blasted, ground, curled and “structured”
surfaces
• Open to diffusion
• Application on the Dry- side by a roller system, after pre IR heating
• Hardening after application by IR system
• Immediate possibility to package the product
• Climate controlled curing beneficial
• Easier to clean compare to a non protected surface
• Higher resistance to de-icing salt, freezing and
weathering

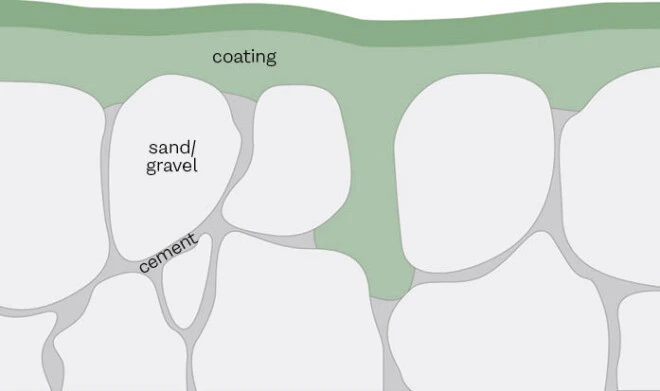

• System for products manufactured on a board machine
• Suitable for washed and non-treated surfaces
• Open to diffusion, film-forming
• Waterborn coating system
• Wet side application by spraying system
• Climate controlled curing beneficial
• Immediate possibility to package the product
• Highly efficient system, less investment cost
• Easier to clean compare to a non protected surface
• Higher resistance to de-icing salt, freezing and weathering
• System for slabs manufactured on a hermetic press, suitable for e.g. shot-blasted, ground or curled surfaces.
• Restricted diffusion, film-forming
• Application by roller system on the dry side after curing
• Very easier to clean compare to a non protected surface
• No efflorescence
• Higher resistence to de-icing salt, freezing and weathering

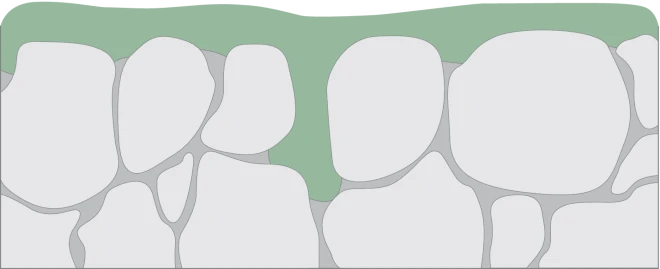

• System for products manufactored on a board machine for special surfaces like “Senzo”
• Restricted diffusion, film-forming
• Spraying application on the wet side
• Climate controlled curing necessary
• Very easy to clean compare to a non protected surface
• No efflorescence
• Higher resistance to de-icing salt, freezing and weathering

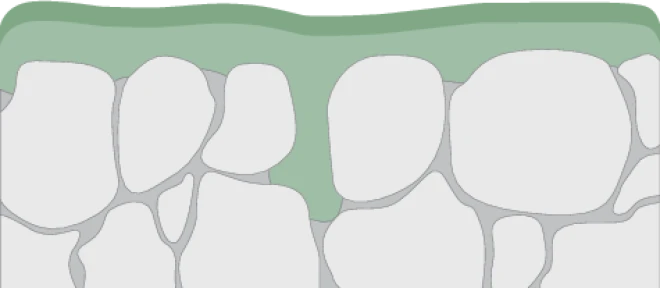

• System suitable for all products prepared with System 4 or for all cementfree products manufactured with the EcoTerra Technology
• Secondary finishes are possible (e.g. shot- blasting)
• Restricted diffusion, film-forming
• Spraying application on the wet side AND a further application by roller system OR spraying device after curing
• Climate controlled curing necessary
• Very easier to clean compare to a non protected surface
• No efflorescence
• Higher resistence to de-icing salt, freezing and weathering
